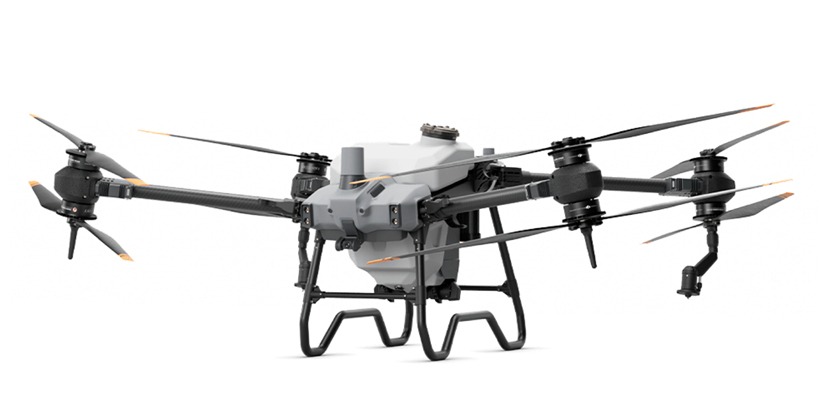

DJI AGRAS T40

Description

Bundle comparison:

3x Battery Bundle
What's in the box...
1x DJI Agras T40 Drone, Spraying Unit, RC + all factory inclusions
1x Remote Controller
1x RTK Dongle
1x WB37 RC Battery
1x WB37 RC Intelligent Battery Charging Hub
3x T40 Intelligent Flight Battery
1x Dual-Channel Intelligent Battery Charging Station
Free Shipping (most locations)
$33885

3x Battery + Spreader + D-RTK Bundle
What's in the box...
1x DJI Agras T40 Drone, Spraying Unit, RC + all factory inclusions
1x Remote Controller
1x RTK Dongle
1x WB37 RC Battery
1x WB37 RC Intelligent Battery Charging Hub
3x T40 Intelligent Flight Battery
1x Dual-Channel Intelligent Battery Charging Station
1x T40 Spreading System
1x DJI D-RTK 2 GNNS Mobile Station
1x DJI D-RTK 2 Tripod
Free Shipping (most locations)
$40000

3x Battery, Spreader, D-RTK + M3M Bundle
What's in the box...
1x DJI Agras T40 Drone, Spraying Unit, RC + all factory inclusions
1x Remote Controller
1x RTK Dongle
1x WB37 RC Battery
1x WB37 RC Intelligent Battery Charging Hub
3x T40 Intelligent Flight Battery
1x Dual-Channel Intelligent Battery Charging Station
1x T40 Spreading System
1x DJI D-RTK 2 GNNS Mobile Station
1x DJI D-RTK 2 Tripod
1x DJI Mavic 3 Multispectral incl 2 Year Basic Shield
1x DJI Mavic 3 Enterprise RTK Module
Free Shipping (most locations)
$48400

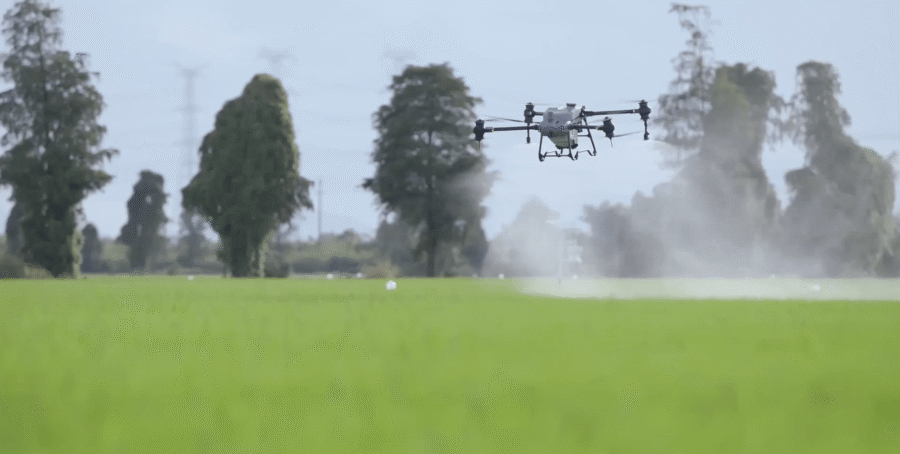

DJI T40: The Ultimate Agricultural Spray Drone

The DJI T40 sets a new standard in agriculture drones with its impressive capabilities and innovative features. Here’s what you need to know:

1. Unmatched Performance:
– Lifts 40L of liquid or 50kg of dry particles (fertilizers, seeds, urea, baits, etc.).
– Increased speed, higher flow rate, and wider spray width result in enhanced productivity.
– Covers up to 130 hectares per day in optimal conditions, spraying up to 12L/ha.

2. Advanced Technology:
– Onboard mapping camera on the aircraft for capturing detailed aerial imagery.
– Larger and brighter controller screen with the option to input droplet size, up to 500 microns.
– Onboard image stitching enables seamless mapping in the controller.
– New rotary-style nozzles for consistent droplet sizes.

3. Enhanced Capability:
– Binocular vision system detects obstacles up to 50 meters away.
– Enables flying in challenging terrains, including orchards, steep areas, and plantations.

4. Versatile Applications:
– Suitable for weed management, pest control, and crop protection.
– No ground compaction and the ability to cover challenging terrains make it ideal for various industries.
– Widely used for managing vegetation in waterways, dam walls, stockpiles, and rail corridors.

The DJI T40 offers a comprehensive and efficient solution for mapping, spreading, and spraying. Its advanced features and cutting-edge technology make it the go-to choice for modern agriculture practices.

Experience a new level of performance, efficiency, and integration with the DJI AGRAS T40. Upgrade your spraying operations and join the league of satisfied users benefiting from this all-in-one solution.

DJI AGRAS T30 / T40 Endorsement

CASA requires anyone flying a drone weighing more than 25kg to have an RePL, and then a “type endorsement” for any machine that weighs more than 25kg, added to their RePL. This training will give you that type endorsement.

I only want to fly on my own land – do I still need a type endorsement?

Yes! Even if you are going to operate over your own land, CASA require you to have a Remote Pilots Licence (RePL) with the Type Endorsement for the particular machine you wish to operate. You may not need the Remote Operator’s Certificate (ReOC), but you will need the RePL with Type Endorsements.

For example. If you want to operate a DJI T40 (even over your own land) then you will need an RePL with the DJI T40 Type Endorsement as a minimum. If you want to fly the DJI T40 for other customers, you will also need an ReOC with the DJI T40 added to it.

Are there any prerequisites?

YES! You must hold a Multirotor <25kg (unrestricted) licence in order to complete. If you only have <7kg, you will need an upgrade.

We can offer you this as part of the training.

How much does it cost?

Please enquire for pricing. We offer both a full day of training including the endorsement or the flight test only.

You must hold an RePL in order to sit this endorsement. If you don’t have an RePL, we can arrange for you to sit our RePL course prior (addition costs incurred).

How long does it take?

This will very much depend on how well you know your DJI Product. If you have already been flying DJI product (and the Agras), then the endorsement should only take a couple of hours.

We would recommend you already have experience (practice) flying a DJI drone. This is so you will already have good grasp of the ecosystem, and had practice on the DJI T40. If you would like specific training on the DJI T40, this can be arranged (additional costs incurred).

Where can I do this?

The DJI Agras endorsement requires a large open space. Ideally you will have somewhere already to host the training. If not, you can also attend our training area in Bowen QLD.

If need be, we will arrange a suitable location around Australia to conduct the training.

Depending on where you are, there may be additional travel costs associated with us getting to you. Please let us know when you book your endorsement.

What’s involved?

You will be required to demonstrate your ability to fly a DJI Agras RPA with skill and agility. You will also need to have a good understanding of the software, and how to program automated flight.

You will also need a fundamental understanding of the regulations surrounding flying above 25kg machines (training material will be supplied to you) in order to pass the flight test.

Should you require intensive DJI Agras specific training, this can be provided (additional costs incurred).

Your paperwork and the associated fee’s are submitted to CASA directly on your behalf.

ENROL NOW

Aircraft Parameters

Total weight	38 kg (without battery) 50 kg (with battery)
Max Takeoff Weight^[1]	Max takeoff weight for spraying: 90 kg (at sea level) Maximum takeoff weight for spreading: 101 kg (at sea level)
Max Diagonal Wheelbase	2184 mm
Dimensions	2800 mm × 3150 mm × 780 mm (arms & propellers unfolded) 1590 mm × 1930 mm × 780 mm (arms unfolded, propellers folded) 1125 mm × 750 mm × 850 mm (arms folded)
Hovering Accuracy Range (with strong GNSS signal)	RTK positioning enabled: ±10 cm horizontal, ±10 cm vertical RTK positioning disabled: ±60 cm horizontal and ±30 cm vertical (radar enabled: ±10 cm)
RTK/GNSS Operating Frequency	RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, Galileo E1/E5 GNSS: GPS L1, GLONASS F1, Galileo E1, BeiDou B1
Hovering Time^[2]	Hovering without payload: 18 min (@30000 mAh & takeoff weight 50 kg) Hovering and spraying with full payload: 7 min (@30000 mAh & takeoff weight 90 kg) Hovering and speading with full payload: 6 min (@30000 mAh & takeoff weight 101 kg)
Max flight radius can be set	2000 m
Max Wind Resistance	6 m/s

Propulsion System – Motor

Stator Size	100×33 mm
Motor KV Value	48 RPM/V
Motor Power	4000 W/rotor

Propulsion System – Propeller

Diameter	54 inch
Rotor Quantity	8

Dual Atomized Spraying System – Operation Box

Operation Box Capacity	Full load 40 L
Operating Payload	Full load 40 kg^[1]

Dual Atomized Spraying System – Sprinkler

Sprinkler Model	LX8060SZ
Sprinkler Quantity	2
Droplet Size	50-300 μm
Max Effective Spray Width^[3]	11 m (relative operating altitude 2.5 m, flight speed 7 m/s)

Dual Atomized Spraying System – Water Pump

Pump Model	Magnetic Drive Impeller Pump
Max Flow Rate	6 L/min*2

T40 Spreading System

Applicable Materials	Solid dry particles with a diameter of 0.5 to 5 mm
Spread Tank Volume	70 L
Spread Tank Internal Load	50 kg^[1]
Spread Width of Spreading System^[4]	7 m
Recommended Operating Temperature	0°C to 40°C (32°F to 104°F)

Active Phased Array Omnidirectional Radar

Model Number	RD2484B
Altitude Detection^[5]	Within the altitude detection range: 1-45 m Fixed altitude range: 1.5-30 m
Rear Obstacle Avoidance^[5]	Sensible distance (rear): 1.5-30 m FOV: ±60° horizontal, ±25° vertical Operating conditions: Available during takeoff, landing, and ascending when an obstacle is more than 1.5 m behind the aircraft and the flight speed does not exceed 7 m/s Safe distance: 2.5 m (distance between the propeller tip and obstacle when the aircraft is hovering after braking) Sensing direction: backward

Binocular Vision System

Measurable Range	0.4-25 m
Effective Sensing Speed	≤7 m/s
FOV	Horizontal: 90; Vertical: 106°
Work Environment Requirements	Normal lighting with clearly textured surfaces

Intelligent Remote Controller

O3 Pro Operating Frequency^[6]	2.4000 to 2.4835 GHz 5.725 to 5.850 GHz
O3 Pro Signal Effective Distance	SRRC: 5 km MIC/KCC/CE: 4 km FCC: 7 km (aircraft altitude at 2.5 m in an unobstructed environment with no interference)
Wi-Fi Protocol	WIFI 6
Wi-Fi Operating Frequency^[6]	2.4000 to 2.4835 GHz 5.150 to 5.250 GHz 5.725 to 5.850 GHz
Bluetooth Protocol	Bluetooth 5.1
Bluetooth Operating Frequency	2.4000-2.4835 GHz
Location	GPS + Galileo + BeiDou
Display Screens	7.02-inch touch LCD with 1920*1200 resolution and 1200cd/m brightness²
Supported Aircraft	AGRAS T40, AGRAS T20P
Operating temperature	-20°C to 50°C (-4°F to 122°F)
Storage Temperature Range	-30°C to 45°C (within one month) -30°C to 35°C (between one month and three months) -30°C to 30°C (between three months and one year)
Charging Temperature	5° to 40°C (41° to 104°F)
Internal Battery Life	3.3 hours
External Battery Life	2.7 hours
Charging Type	Use a USB-C charger with a maximum rated power and voltage of 65 W and 20 V. The DJI Portable Charger is recommended.
Charging Time	Two hours for both internal and internal plus external batteries (to use the official charging method when the aircraft is off)

T40 Intelligent Flight Battery

Model	BAX601-30000mAh-52.22V
Weight	Approx. 12 kg
Capacity	30000 mAh
Voltage	52.22 V

D12000iE Multifunctional Inverter Generator

Output Channel	1. DC charging output 42-59.92V/9000W 2.Power supply for air-cooled heat sink 12 V/6 A 3.AC output 230V/1500W or 120V/750W [7].
Battery Charging Time	To fully charge one battery (T40 battery) takes 9-12 mins
Fuel Tank Capacity	30 L
Starting Method	Starting the Generator via the One-Button Start Switch
Max Power of Engine	12000 W
Fuel Type	Unleaded gasoline with RON ≥91 (AKI ≥87) and alcohol content less than 10% (*Brazil: unleaded gasoline with RON ≥ 91 and alcohol content of 27%)
Reference Fuel Consumption [8]	500 ml/kWh
Engine Oil Model	SJ 10W-40

Definition

[1] Data was measured at sea level. The payload weight is greatly affected by the ambient temperature and altitude. The payload weight needs to be reduced by 10 kg for every 1,000m increase in altitude. The DJI Agras app will recommend the payload weight according to the current status and surroundings of the aircraft. When adding materials, the maximum weight should not exceed the recommended value, otherwise flight safety may be compromised.
[2] Hovering time measured at sea level with a wind speed lower than 3 m/s and ambient temperature of 25°C, when the battery power fell from 100% to 0%. The data is for reference only. The actual environment may differ from the testing environment. The figure listed is for reference only.
[3] The spray width of the spraying system depends on the operating scenario.
[4] The spread width of the spreading system depends on the operating scenario.
[5] The effective sensing range varies depending on the material, position, shape, and other properties of the obstacle.
[6] In some countries, the 5.1 and 5.8GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Please refer to local laws and regulations. [7] The actual power and voltage may vary according to local regulations
[8] Measured using RON 92 gasoline at near sea level with an ambient temperature of 25°C, while charging at 9 kW.
